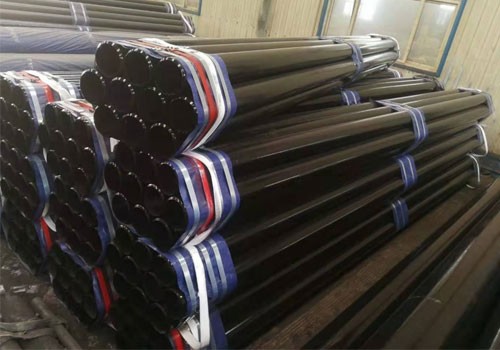

EN10216 Boiler Tube
Product description: EN10216 Boiler Tube
EIN10216 Boiler Tube
Description:
Type: Hot-rolled steel pipe, Cold-drawn steel pipe.
Specification: OD: 10.2-720mm. WT: 1.2-12mm. L.: 5-12m or customized.
Standard: EN 10216-2.
Grade: P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10.
Surface: Painting, oil coating, Anti-corrosion and insulation.
Supplementary Technology: Plain or threaded with socket or beveled with plastic caps, hydraulic testing, eddy current, Infrared test.
Packing: Weaving bag, Seaworthy bundles, Wooden case if customer required
What is EN10216-2 Steel Pipe?
EN10216 steel pipe is specification made for seamless steel tubes for specified elevated temperature purposes such as boiler tubes, power plants, etc, it has the following steel grades: P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10, with non-alloy and alloy steel included. EN 10216 steel pipe specifies the technical delivery conditions in 2 test categories for seamless tubes of circular cross-section.
EN10216-2 Steel Pipe Chemical Composition
Steel grades | EN10216-2 Steel Pipe CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||
C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | |
P195GH | 0.13 | 0.35 | 0.7 | 0.025 | 0.02 | 0.3 | 0.08 | 0.3 |
P235GH | 0.16 | 0.35 | 1,20 | 0.025 | 0.02 | 0.3 | 0.08 | 0.3 |
P265GH | 0.2 | 0.4 | 1,40 | 0.025 | 0.02 | 0.3 | 0.08 | 0.3 |
16Mo3 | 0.12- 0.20 | 0.35 | 0.40- 0.70 | 0.025 | 0.02 | 0.3 | 0.25- 0.35 | 0.3 |
14MoV6-3 | 0.10- 0.15 | 0.15- 0.35 | 0.40- 0.70 | 0.025 | 0.02 | 0.30- 0.60 | 0.50- 0.70 | 0.3 |
13CrMo4-5 | 0.15 | 0.50- 1,00 | 0.30- 0.60 | 0.025 | 0.02 | 1,00- 1,50 | 0.45- 0.65 | 0.3 |
10CrMo9-10 | 0.10- 0.17 | 0.35 | 0.40- 0.70 | 0.025 | 0.02 | 0.70- 1,15 | 0.40- 0.60 | 0.3 |
EN 10216-2 Steel Pipe Mechanical Property
EN 10216-2 Steel Pipe Mechanical properties | ||||||||||||
Steel grades | Mechanical properties during tensile testing at room temperature | Resilience | ||||||||||
Upper yield limit or yield strength Re or R0.2 for wall thickness of t min | Tensile strength Rm | Elongati-on A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
T≤16 | 16<t≤40< span=""> | 40<t≤60< span=""> | 60<t≤60< span=""> | I | T | |||||||
MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | |
P195GH | 195 | - | - | - | 320- 440 | 27 | 25 | - | 40 | 28 | - | 27 |
P235GH | 235 | 225 | 215 | - | 360- 500 | 25 | 23 | - | 40 | 28 | - | 27 |
P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 |
16Mo3 | 280 | 270 | 260 | - | 450- 600 | 22 | 20 | 40 | - | - | 27 | - |
14MoV6-3 | 320 | 320 | 310 | - | 460- 610 | 20 | 18 | 40 | - | - | 27 | - |
13CrMo4-5 | 290 | 290 | 280 | - | 440- 590 | 22 | 20 | 40 | - | - | 27 | - |
10CrMo9-10 | 280 | 280 | 270 | - | 480- 630 | 22 | 20 | 40 | - | - | 27 | - |
EN 10216-2 Steel Pipe Equivalent steel grade
Steel Grade
Steel Standard
Steel Grade
Steel Standard
Steel Grade
