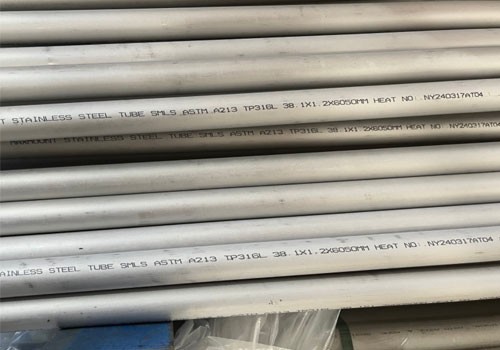

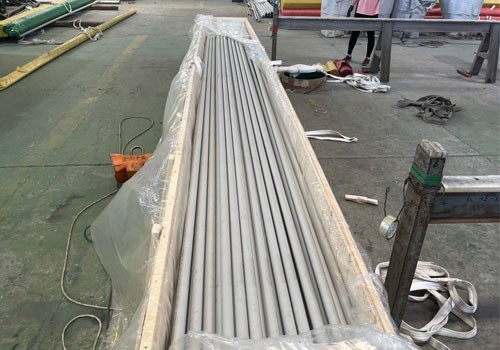

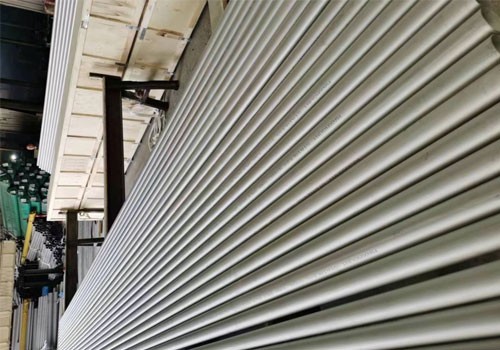

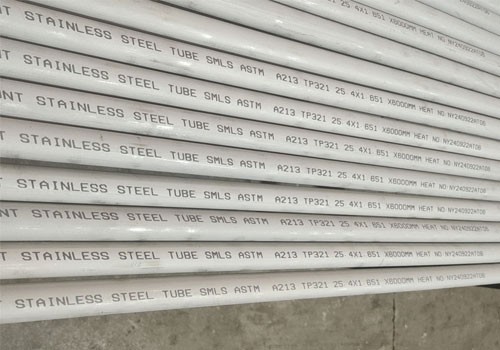

ASTM A213 Stainless Steel Tube
Product description: ASTM A213 Stainless Steel Tube
ASTM A213 Stainless Steel Tube
Description:
Type: Seamless steel pipe,
Specification: OD:1/2” – 36”. WT: 1.2mm – 100mm or Customized.
Standard: ASTM A213 ASME SA213
Grades: TP201 TP304 TP304L TP316 TP316L TP310, TP321, TP347 and so on.
End: Plain ends, Beveled ends
Coating: Electropolish, Mechanical Polish, Satin Finish, Passivated.
What is the ASTM A213 Steel Stainless Steel Tube?
ASTM A213 steel tube covers seamless ferritic and austenitic steel boilers, Boiler tubes, and heat-exchanger tubes for high-temperature services,
ASTM A213 Stainless Steel Tube Chemical Composition(%)
Grade | UNS | C max | Mn max | P max | S max | Si max | Cr | Nickel | Mo |
TP201 | S20100 | 0.15 | 5.5-7.5 | 0.06 | 0.03 | 1.00 | 16-18 | 3.5-5.5 | |
TP304 | S30400 | 0.08 | 2.00 | 0.045 | 0.035 | 1.00 | 18-20 | 8.0-11 | |
TP304L | S30403 | 0.035 | 2.00 | 0.045 | 0.035 | 1.00 | 18-20 | 8.0-12 | |
TP304H | S30409 | 0.04-1.0 | 2.00 | 0.045 | 0.035 | 1.00 | 18-20 | 8.0-11 | |
TP310S | S31008 | 0.08 | 2.00 | 0.045 | 0.035 | 1.00 | 24-26 | 19-22 | |
TP310H | S31009 | 0.04-1.0 | 2.00 | 0.045 | 0.035 | 1.00 | 24-26 | 19-22 | |
TP316 | S31600 | 0.08 | 2.00 | 0.045 | 0.035 | 1.00 | 16-18 | 10-14 | 2-3 |
TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.035 | 1.00 | 16-18 | 10-14 | 2-3 |
TP316H | S31609 | 0.04-1.0 | 2.00 | 0.045 | 0.035 | 1.00 | 16-18 | 11-14 | 2-3 |
TP321 | S32100 | 0.08 | 2.00 | 0.045 | 0.035 | 1.00 | 17-19 | 9-12 | |
TP321H | S32109 | 0.04-1.0 | 2.00 | 0.045 | 0.035 | 1.00 | 17-19 | 9-12 | |
TP347 | S34700 | 0.08 | 2.00 | 0.045 | 0.035 | 1.00 | 17-20 | 9-13 | |
TP347H | S34709 | 0.04-1.0 | 2.00 | 0.045 | 0.035 | 1.00 | 17-19 | 9-12 |
ASTM A213 Stainless Steel Tube Mechanical properties:
Grade | UNS | Tensile Strength, | Yield Strength, | Elongation in 2 in. or 50 mm | Hardness, Max |
| min, ksi [MPa] | min, ksi [MPa] | min, % |
| |
TP201 | S20100 | 95[655] | 38[260] | 35 | 219 HBW/ |
230 HV | |||||
TP304 | S30400 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP304L | S30403 | 70[485] | 25[170] | 35 | 192 HBW/ |
200 HV | |||||
TP304H | S30409 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP310S | S31008 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP310H | S31009 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP316 | S31600 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP316L | S31603 | 70[485] | 25[170] | 35 | 192 HBW/ |
200 HV | |||||
TP316H | S31609 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP321 | S32100 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP321H | S32109 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP347 | S34700 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV | |||||
TP347H | S34709 | 75[515] | 30[205] | 35 | 192 HBW/ |
200 HV |
ASTM A213 Steel Tubes Outside Diameter and Wall Thickness Tolerance
OD, mm | OD Tolerance |
< 25.4 | +/- 0.10 |
25.4 – <= 38.1 | +/- 0.15 |
> 38.1 -< 50.8 |
