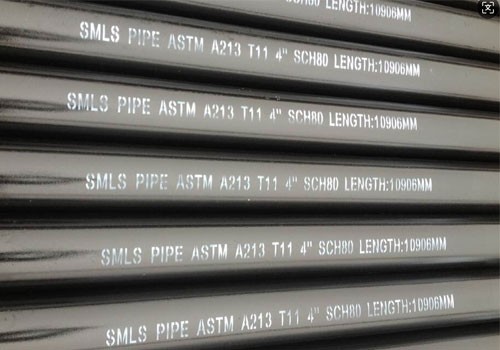

ASTM A213 Boiler Tube
Product description: ASTM A213 Boiler Tube
ASTM A213 Boiler Tube Alloy Steel Tube
Description:
Type: Seamless steel pipe
Specification: OD:1/2” – 36”. WT: 2mm – 100mm or Customized.
Standard: ASTM A213 ASME SA213
Grades: T2, T11, T12, T22, T5, T9, T91, and T92, and so on.
End: Plain ends, Beveled ends
What is the ASTM A213 Steel Tube?
ASTM A213 steel tube covers seamless ferritic and austenitic steel boilers, Boiler tubes, and heat-exchanger tubes for high-temperature services, designated Grades T5, T11 T22 T9, etc. Grades with the letter H has higher creep-rupture strength compared with grades with no H. ASME SA213 seamless steel tubes are chrome moly Tubes with alloy element of chromium, and molybdenum. We also keep stock of ASTM A213 seamless tubes of Alloy Steel: T2, T11, T12, T22, T91, and T92 in annealed and pickled, bright annealed, mill finish, and polished conditions according to customer requirements.
ASTM A213 Alloy Steel Tube Chemical Composition(%)
Steel Grade | ASTM A213 boiler steel tube Chemical Composition% | |||||
C | Si | Mn | P, S Max | Cr | Mo | |
T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0.025 | 0.50~0.81 | 0.44~0.65 |
T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0.025 | 1.00~1.50 | 0.44~0.65 |
T12 | 0.05~0.15 | Max 0.5 | 0.30~0.61 | 0.025 | 0.80~1.25 | 0.44~0.65 |
T22 | 0.05~0.15 | Max 0.5 | 0.30~0.60 | 0.025 | 1.90~2.60 | 0.87~1.13 |
T5 | Max0.15 | Max 0.5 | 0.30~0.60 | 0.025 | 4.0~6.0 | 0.44~0.65 |
T9 | Max0.15 | 0.25~1.0 | 0.30~0.60 | 0.025 | 8.0~10.0 | 0.90~1.10 |
T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0.02 | 8.0~9.5 | 0.85~1.05 |
T92 | 0.07~0.13 | Max 0.5 | 0.30~0.60 | 0.02 | 8.5~9.5 | 0.30~0.60 |
ASTM A213 Alloy Steel Tube Mechanical properties:
Steel Grade | ASTM A213 Boiler Steel Tube Mechanical Properties | |||
T. S | Y. P | Elongation | Hardness | |
T2 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) |
T11 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) |
T12 | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW(85HRB) |
T22 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) |
T5 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) |
T9 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) |
T91 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW(25HRB) |
T92 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW(25HRB) |
ASTM A213 Steel Tubes Outside Diameter and Wall Thickness Tolerance
OD, mm | OD Tolerance |
< 25.4 | +/- 0.10 |
25.4 – <= 38.1 | +/- 0.15 |
> 38.1 -< 50.8 | +/- 0.20 |
50.8 -< 63.5 | +/- 0.25 |
63.5 -< 76.2 | +/- 0.30 |
76.2 – <= 101.6 | +/- 0.38 |
> 101.6 – <= 190.5 | +0.38/-0.64 |
> 190.5 – <= 228.6 | +0.38/-1.14 |
OD, mm | WT Tolerance |
<= 38.1 | +20%/-0 |
> 38.1 | +22%/-0 |
